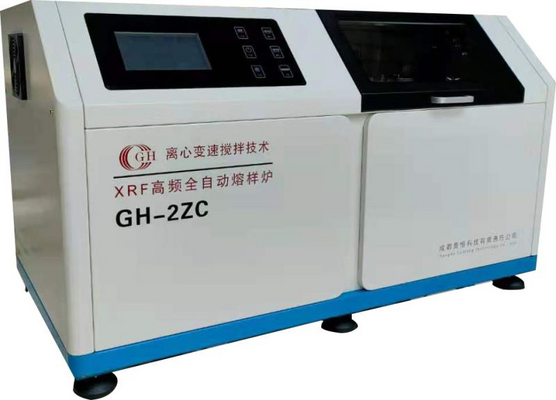

Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments

Large Image : Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments

Product Details:

Place of Origin:	Chengdu China
Brand Name:	Guiheng
Certification:	ISO
Model Number:	GH-2ZC

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Contact Now Chat Now

Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments

Description

Highlight:

Fusion XRF Analysis Equipment

XRF Analysis Equipment 50KHz

80KHz Sample Preparation Instruments

XRF High-Frequency Fusion Sample Equipment

Advanced sample preparation equipment designed for XRF analysis with precise temperature control and innovative stirring technology.

Technical Specifications

Parameter	Specification
Unit Type	GH-2ZC
Maximum Output	6KW (fused and molded power supply output power)
Oscillation Frequency Range	50KHz-80KHz
Current Regulation Range	35A-130A
Time Adjustment Range	0s-999s
Forming Mode	Auto
Sample Production per Batch	2
Cooling Water Pressure	0.1-0.3MPa
Program Storage	More than 10 groups
Fusion Temperature	0-1300℃ (adjustable)
Temperature Control Accuracy	±1℃
Stirring Method	Centrifugal rotation + positive reversal (exclusive patent)
★ Rotational Speed Range	0-180 rpm/min (adjustable)
★ Speed Change Period	N. times/min (adjustable)
Infrared Temperature Measurement Range	400℃-1200℃
Main Dimensions (L×W×H)	1160×640×680mm
Host Net Weight	192kg
Tank Shape Size	800×540×920mm
Water Tank Net Weight	90kg

★ Mark indicates unique technical parameters exclusive to Guiheng Company
