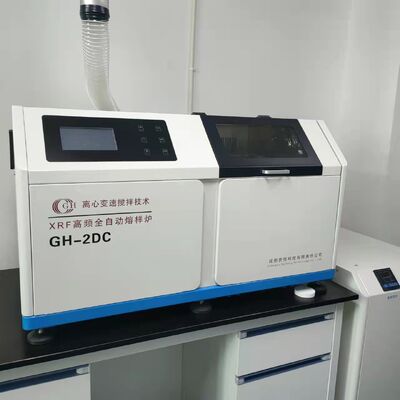

High Frequency XRF Fusion Sample Equipment 0-6KW For Precise

High Frequency XRF Fusion Sample Equipment 0-6KW For Precise
High Frequency XRF Fusion Sample Equipment 0-6KW For Precise High Frequency XRF Fusion Sample Equipment 0-6KW For Precise

Large Image :  High Frequency XRF Fusion Sample Equipment 0-6KW For Precise

Product Details:
Place of Origin: Chengdu China
Brand Name: guiheng
Certification: ISO
Model Number: GH-2DC
Payment & Shipping Terms:
Minimum Order Quantity: 1ser
Delivery Time: 30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Contact Now Chat Now

High Frequency XRF Fusion Sample Equipment 0-6KW For Precise

Description
Highlight:

High Frequency XRF Fusion Sample Equipment

,

Precise XRF Fusion Sample Equipment

,

6KW High Frequency XRF Fusion

XRF High-Frequency Fusion Sample Equipment

Table 1: Main parameters of equipment

Unit type

GH-2DC

Maximum output

0-6KW (fused and molded power supply output power)

Range of oscillation frequencies

50KHz-80KHz

Range of current regulation

35A-130A

Time adjustment range

0s-999s

Forming mode

Auto

Sample production per batch

2

Cooling water pressure

0.1-0.3MPa

Program storage

More than 10 groups

Fusion temperature

0-1300℃ (adjustable)

Temperature control accuracy

±1℃

Stirring method

Centrifugal rotation + positive reversal (exclusive patent)

Rotational speed range ★

0-180 rpm / min (adjustable)

Speed change period ★

N. times / min (adjustable)

Infrared temperature measurement range

400℃-1200℃

Main dimensions (length, width and height)

1160×640×680mm

Host net weight

192kg

Tank shape size

800x540x920

Water tank net weight

90kg

"★" Mark is the unique technical parameter of Guiheng Company

.
Key Features
  • High-frequency induction heating for rapid sample fusion
  • Precise temperature control for consistent results
  • Automated operation for improved efficiency
  • Robust construction for industrial environments
  • Compatible with various sample types and sizes
Applications
Ideal for XRF analysis in mining, metallurgy, cement production, and quality control laboratories. Ensures proper sample preparation for accurate elemental analysis across multiple industries.
