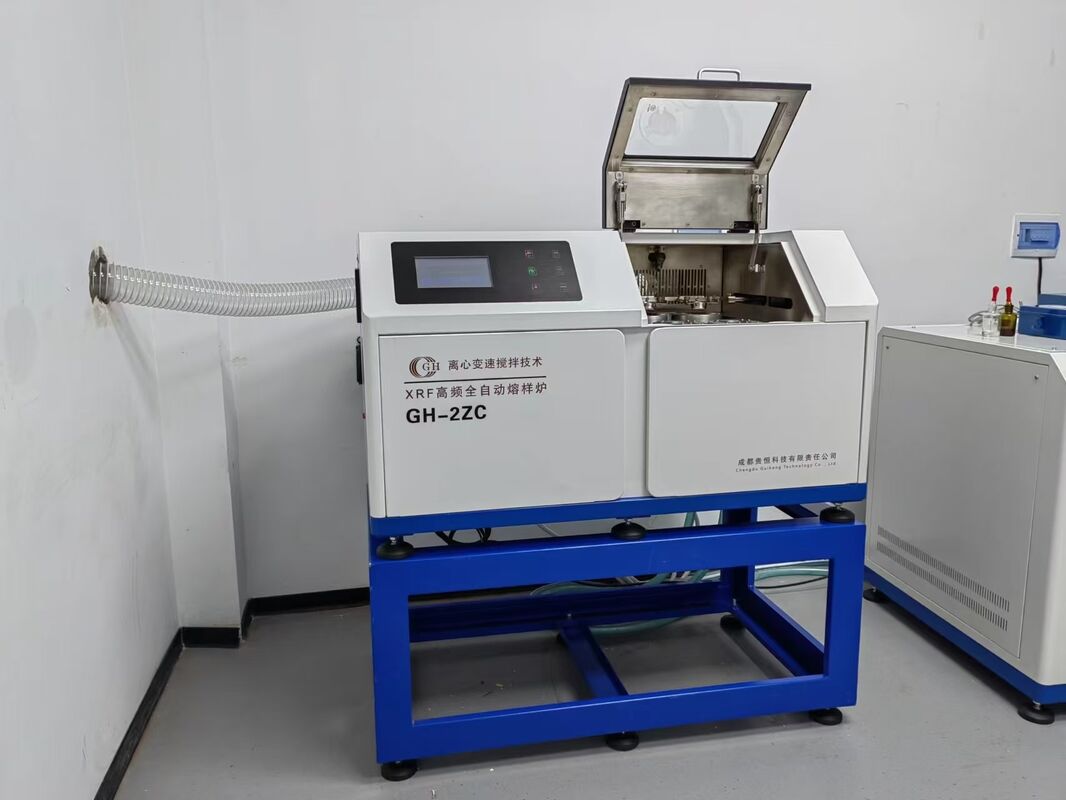

35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation

35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation
35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation
35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation 35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation

Large Image :  35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation

Product Details:
Place of Origin: Chengdu China
Brand Name: guiheng
Certification: ISO
Model Number: GH-2ZC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Delivery Time: 30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Contact Now Chat Now

35A-130A XRF Fusion Machine 50KHz-80KHz XRF Sample Preparation

Description
Highlight:

130A XRF Fusion Machine

,

35A XRF Fusion Machine

,

80KHz XRF Sample Preparation

XRF high-frequency fusion sample equipment

Table 1: Main parameters of equipment
Unit type GH-2ZC
Maximum output 6KW (fused and molded power supply output power)
Range of oscillation frequencies 50KHz-80KHz
Range of current regulation 35A-130A
Time adjustment range 0s-999s
Forming mode Auto
Sample production per batch 2
Cooling water pressure 0.1-0.3MPa
Program storage More than 10 groups
Fusion temperature 0-1300℃ (adjustable)
Temperature control accuracy ±1℃
Stirring method Centrifugal rotation + positive reversal (exclusive patent)
Rotational speed range ★ 0-180 rpm / min (adjustable)
Speed change period ★ N. times / min (adjustable)
Infrared temperature measurement range 400℃-1200℃
Main dimensions (length, width and height) 1160*640*680mm
Host net weight 192kg
Tank shape size 800x540x920
Water tank net weight 90kg

"★" Mark is the unique technical parameter of Guiheng Company
