Radiation Shielding XRF Fusion Machine Sample Preparation XRF Analysis Machine

Radiation Shielding XRF Fusion Machine Sample Preparation XRF Analysis Machine
Radiation Shielding XRF Fusion Machine Sample Preparation XRF Analysis Machine

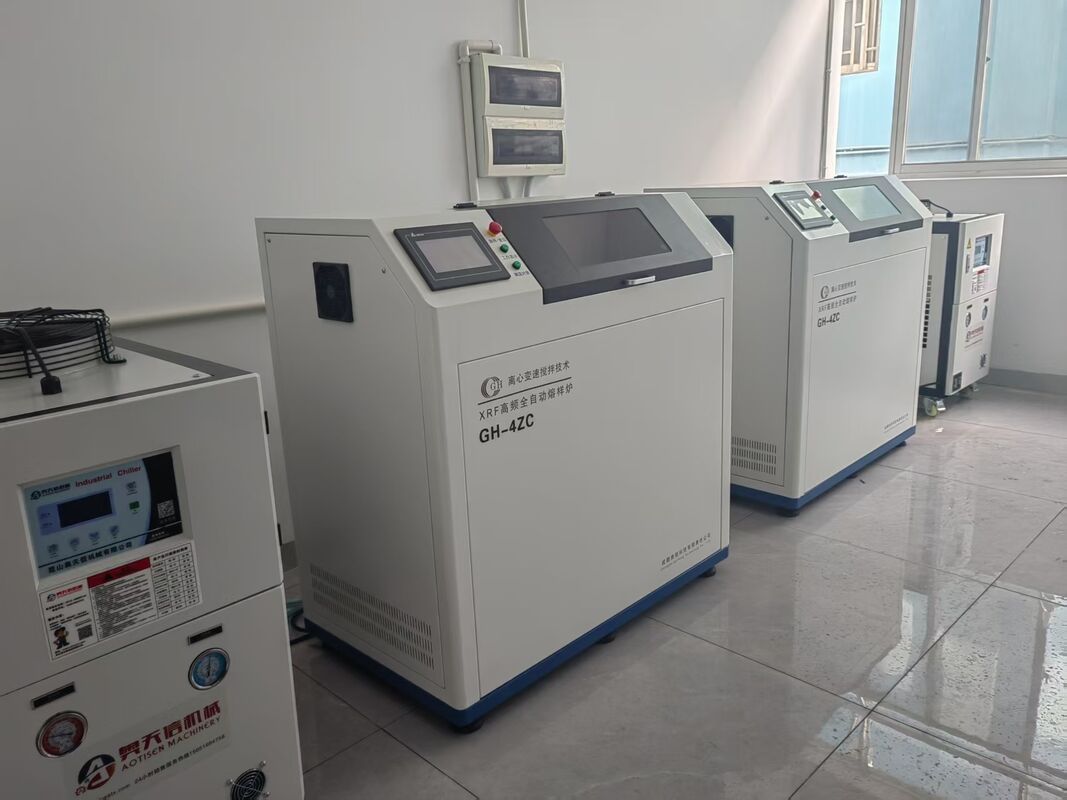

Large Image :  Radiation Shielding XRF Fusion Machine Sample Preparation XRF Analysis Machine

Product Details:
Place of Origin: Chengdu china
Brand Name: Guiheng
Certification: ISO
Model Number: XRF High-frequency Fusion Sample Equipment 4ZC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Delivery Time: 30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Contact Now Chat Now

Radiation Shielding XRF Fusion Machine Sample Preparation XRF Analysis Machine

Description
Softwarefeatures: Quantitative Analysis, Qualitative Analysis, Data Export Analysistime: 30 Seconds To 3 Minutes
Safetyfeatures: Radiation Shielding, Interlock Protection Dimensions: 600mm X 500mm X 400mm
Productname: XRF Fusion Machine Measurementmethod: XRF (X-ray Fluorescence)
Measurementrange: Ppm To 100% Application: Material Composition Analysis
Highlight:

Radiation Shielding XRF Fusion Machine

,

XRF Fusion Machine Sample Preparation

,

Sample Preparation XRF Analysis Machine

Table 1: Main parameters of equipment

Unit type

GH-4ZC

Maximum output

12KW (fused and molded power supply output power)

Range of oscillation frequencies

50KHz-80KHz

Range of current regulation

35A-130A

Time adjustment range

0s-999s

Forming mode

Auto

Sample production per batch

4

Cooling water pressure

0.1-0.3MPa

Program storage

More than 10 groups

Fusion temperature

0-1300℃ (adjustable)

Temperature control accuracy

±1℃

Stirring method

Centrifugal rotation + positive reversal (exclusive patent)

Rotational speed range ★

0-180 rpm / min (adjustable)

Speed change period ★

N. times / min (adjustable)

Infrared temperature measurement range

400℃-1200℃

Main dimensions (length, width and height)

1160*660*1100mm

Host net weight

390kg

Tank shape size

990x690x1530mm

Water tank net weight

130kg

"★" Mark is the unique technical parameter of Guiheng Company

Tag:

XRF Sample Preparation Machine,

laboratory sample preparation,

XRF analysis equipment
