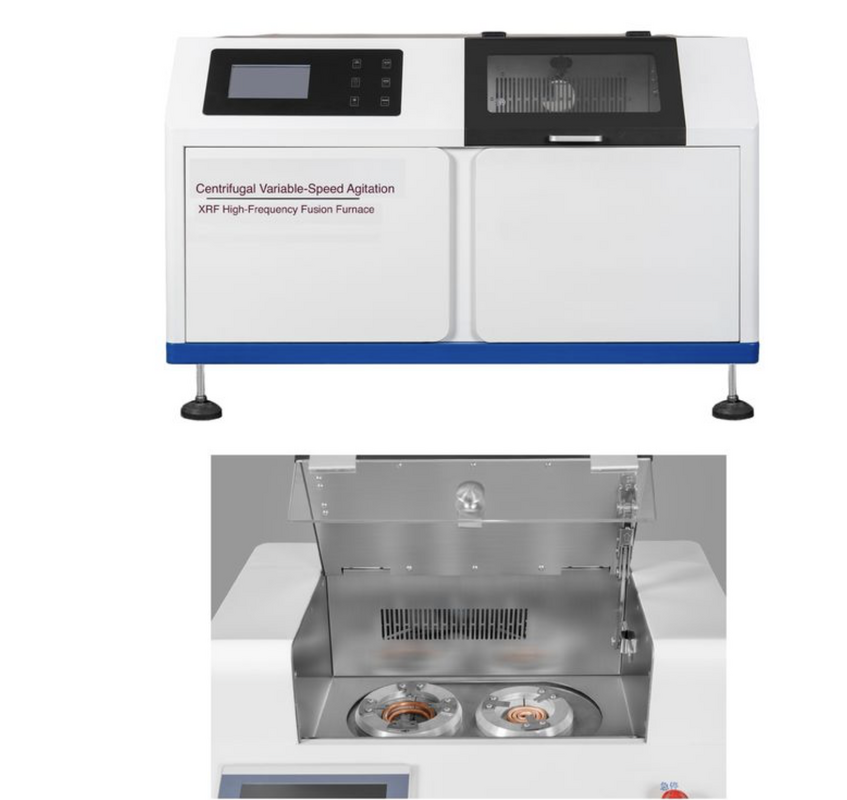

XRF High-Frequency Fusion Furnace with Manual Casting, 2 Crucibles & 2 Molds for High-Efficiency, Stable, Precise Laboratory Sample Preparation

It is a manually cast sample preparation equipment specially designed for X-ray fluorescence (XRF) spectroscopy analysis, suitable for the preparation of metal, ore and other samples in laboratories.

• Sample Preparation Efficiency: Processes 2 samples per batch, taking about 10 minutes per batch with fast heating, suitable for intermittent sample preparation needs;
• Temperature Control Capability: Infrared temperature measurement range of 400℃-1200℃, temperature control accuracy ≤±1℃, ensuring strong sample preparation consistency;
• Key Configuration: Oscillation frequency of 50-80KHz, rated power of 0-6KW, cooling water pressure required to be controlled at 0.1-0.3MPa;
• Equipment Dimensions: Main unit 1120×620×650mm, matched with water tank 800×540×920mm, main unit net weight 186kg.

• Efficient Stirring: Adopts patented centrifugal variable-speed stirring technology to realize cyclic rotation of stop-slow-fast-slow-stop, ensuring full mixing of samples and fluxes, and enabling low-temperature rapid sample melting;
• High Durability: High-temperature resistant alloy material replaces traditional refractory/ceramic materials, with induction coil equipped with protective structure, no wearing parts or consumables, and low failure rate of mechanical components working at room temperature;
• Safe Operation: Sample melting with door closed and sampling at room temperature, only the crucible generates heat without thermal radiation, providing a friendly working environment, no need for special supervision, allowing simultaneous handling of other tasks;
• Convenient Maintenance: Modular combined structure for easy replacement of parts, supports remote assisted maintenance, 24-hour after-sales response, and free repair and part replacement during the warranty period.

Widely used in iron and steel, geology and mineral resources, ceramics, non-ferrous metal smelting, phosphorus chemical industry and other industries. It is suitable for melting samples for chemical element analysis of minerals, raw materials and finished products in production process control and quality inspection, and can be used with X-ray fluorescence spectrometers and atomic absorption spectrometers.
