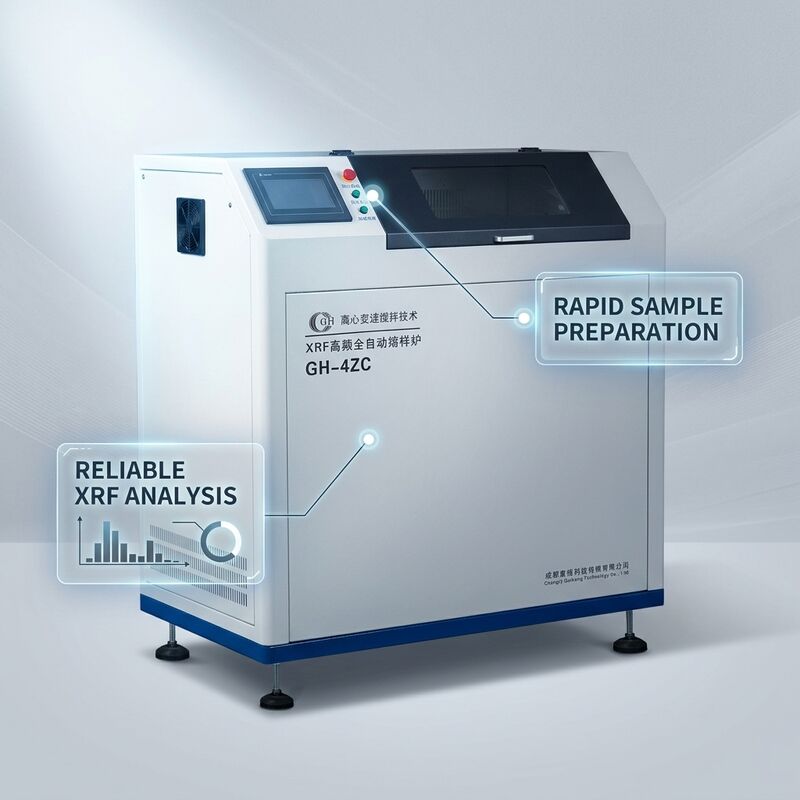

XRF Fusion Lab Sample Preparation 50KHz-80KHz High Frequency

Large Image : XRF Fusion Lab Sample Preparation 50KHz-80KHz High Frequency

Product Details:

Place of Origin:	Chengdu,China
Brand Name:	Guiheng
Certification:	ISO
Model Number:	GH-4ZC

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Delivery Time:	30days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C

Contact Now Chat Now

XRF Fusion Lab Sample Preparation 50KHz-80KHz High Frequency

Description

Highlight:

XRF Fusion Lab Sample Preparation

Fusion Lab Sample Preparation 50KHz

80KHz XRF Fusion Lab Sample Preparation

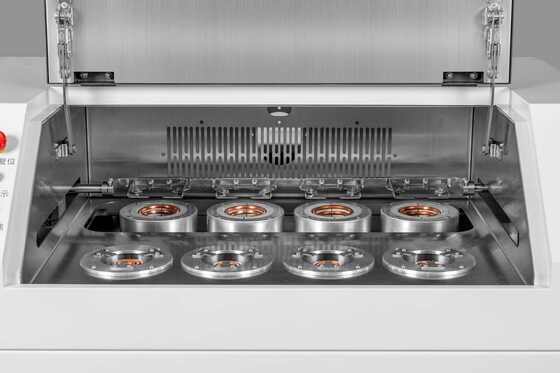

Four-Crucible-Four-Mold Automatic Pouring

XRF High-frequency Fusion Sample Equipment

This system utilizes four independent high-frequency power supplies, allowing simultaneous heating of four crucibles. Users can directly and independently adjust the power of each crucible on the screen for precise temperature control. The large single-batch sample preparation capacity, combined with the rapid heating characteristics of high-frequency technology, results in a daily output that exceeds the level of traditional eight-crucible furnaces using silicon carbide rods.

Technical Parameters

Model number	GH-4ZC
Working Power Supply	AC 380V/50Hz/32A
Rated Power	0 ~ 12KW
Oscillation Frequency	50-80KHz
Current Adjustment Range	35 ~ 130
Time Adjustment Range	0 ~ 3600s
Cooling Water Pressure	0.1 ~ 0.3MPa
Cooling Water Over-temperature Protection Point	40℃
Maximum Temperature of Melt (Specific Conditions)	1500℃
Temperature Control Method	Independent temperature adjustment for each crucible
Station Rotation Mode	Horizontal centrifugal variable-speed rotation + Forward/reverse rotation
Rotation Speed Range ★	0 ~ 180r/min (adjustable)
Rotation Radius Range ★	0-20mm
Rotation Speed Change Cycle ★ (Stop-Slow-Fast-Slow-Stop)	1 cycle/30s
Sample Preparation Speed	10 min per batch
Maximum Quantity per Batch	4 pieces
Forming Method	Automatic Casting
Infrared Temperature Measurement Range	400℃-1200℃
Main Unit Dimensions (LWH)	9206201108 (mm)

Note: The parameters marked with "★" are proprietary technical specifications of Guiheng Company.
